ProLine-PW

Suspension power cable for Electrical Submersible Pump

Application

Installation of ESP without killing a well

Power supply to ESP

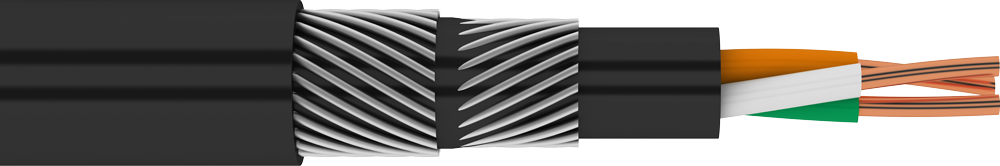

Cable side view
Insulated copper conductor
Inner jacket
Armoring steel wires incorporated into outer jacket
Outer jacket
Cable cut view

Parameters

Temperature rating +90°C
+125°C
+140°C
+150°C
+180°C
+200°C 		+194°F
+257°F
+284°F
+302°F
+356°F
+392°F
Cable diameter 20.0–22.0 mm 0.787-0.866 in
Copper conductor section 8.0-16.0 mm2 9 AWG - 6 AWG
Minimum bending radius (no load) x 20D

Other options available upon request.

Features

  • Easy sealing
  • High resistance to aggressive environments
  • High tensile strength and crush resistance
